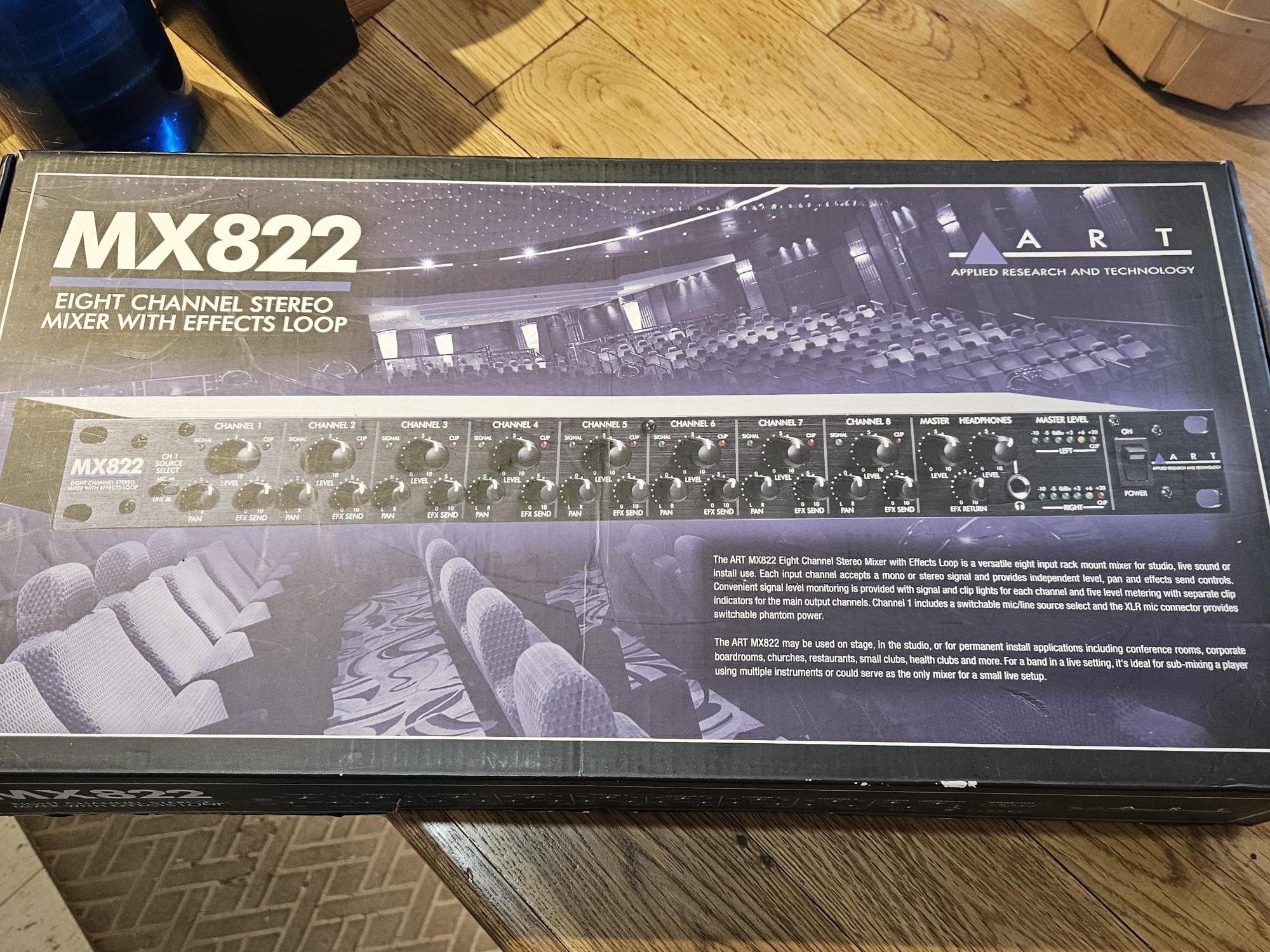

used ART MX822 Eight Channel Stereo Mixer with Effects Loop

The ?ART MX822 Eight Channel Stereo Rackmount Mixer? is a versatile eight input mixer for studio, live sound or installation applications. Each input accepts a mono or stereo signal and provides independent level, pan and effects send controls. Channel One includes a switchable mic/line source select and the XLR mic connector provides switchable phantom power.

Multiple MX822s may be chained for additional inputs using common 1/4-inch TRS cables. External effects processors can be linked in and mixed with independent level controls. A front panel headphone jack with separate level control allows independent monitoring.

Key Features

• Eight stereo/mono input channels with individual level, pan and effects send controls

• External effects loop with independent send and return controls

• Front panel 1/4-inch stereo (TRS) headphone jack with amplifier and independent level control for

• output monitoring

• Switchable balanced microphone XLR or 1/4-inch inputs on Channel One

• Switchable low noise +48V phantom power for microphone input

• Separate green and red LED signal and clip indicators for each input channel

• Six level left and right main output metering including clip indicators

• Balanced left and right XLR main outputs

• Multiple units may be chained together for additional inputs

• Rugged 1U rack mount steel case
