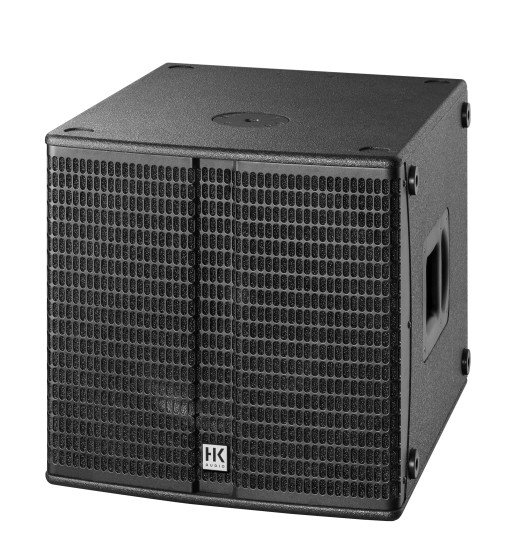

HK Audio - LINEAR SUB 1500 A
|
|
|
|
|
|
|
| Concept | Active subwoofer |
| Power handling RMS | |
| Max. SPL peak | 132 dB |
| Frequency range -6 dB | 49 Hz - X-Over |
| Dispersion angle -6 dB (horizontal x vertical) |
technical data
Specifications
ConceptActive subwoofer
Cabinet principleBass reflex
Max. SPL average2130 dB
Max. SPL peak3132 dB
Crossover frequency100 Hz / 120 Hz selectable
Frequency range -6 dB49 Hz - X-Over
Frequency range -10 dB45 Hz - X-Over
Index
Index 2)1 x Subwoofer @ 1 m, 10 % THD, 40 Hz - Crossover, (EN 60268-21), half space
Index 3)1 x Subwoofer @ 1 m, 10 % THD, half space
Components
Low frequency1 x 15" cone speaker, 3" voice coil
Connections
Analog input2 x XLR/jack combo symm.
Analog output2 x XLR-Thru symm.
Sattelite output2 x XLR Line Out Mid/High mit High pass
Electronical data
PreamplifierAnalog preamplifier
Power amplifierClass D
Power amplifier output peak1200 W
Power consumption3 A / 220-240 V (6 A / 100-120 V) according to EN 60065
Speaker protectionSubsonic 24 dB/oct., Peak-Limiter
Mechanical data
Cabinet features/rigging1 x pole mount M20
Carrying handles2 x HK Audio MultiGrip
Cabinet materialMDF
Cabinet surfaceacrylic enamel
ColorJet black (RAL 9005)
Front grilleSteel front grille, backed with acoustic foam
Dimensions (W x H x D), metric48.5 x 48.5 x 59.5 cm
Dimensions (W x H x D), imperial19-3/32 x 19-3/32 x 23-7/16 inch
Weight, metric29.8 kg
Weight, imperial65.7 lbs
