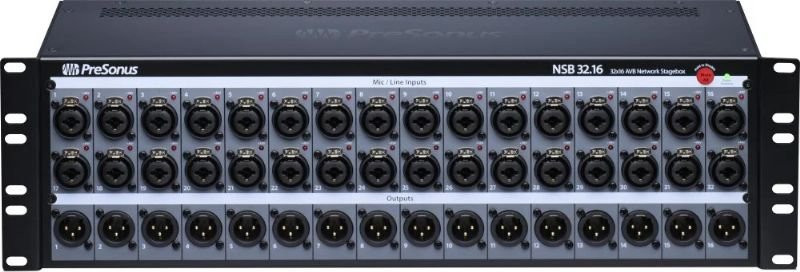

Presonus 32-Channel AVB Networked Stage Box For Studiolive NSB-32.16
Expand the capabilities of your StudioLive Series III mixer (sold separately) with the NSB-32-16 32 input remote stage box. 32 balanced mic/line combo jack inputs feature wide dynamic range Class A XMAX preamps that capture everything from a whisper to a scream with detail and transparency. All inputs are remote controllable from a StudioLive Series III console (sold separately) or via the free UC Surface software on your favorite computer or personal device. Sixteen locking XLR outputs feed your console and a two-port AVB switch that allows daisy-chaining multiple units (sold separately) for scalability. The NSB-32-16's rugged 3-unit 19-inch chassis features multi-position rack ears for flexible installation providing access to I/O from the front or rear. It can be flush or recess mounted and is compatible with most racks and universal stage pockets.
- Rugged 3U 19-inch rack enclosure with multi-position rack ears for flexible installation
- 32 locking, combo mic/line inputs and 16 XLR line outputs
- 32 remote-controllable XMAX preamps
- Gain compensation provides independent control from multiple mixers
- 16 locking XLR line outputs
- 2 Stereo AES3 Digital Outputs
- 2 AVB ports with locking XLR Ethernet jacks
- 64x16 AVB (32 direct input channels + 32 gain compensated input channels)
- Mute All button
- +48V indicators
- Easy setup and remote gain control from StudioLive® Series III mixers and free PreSonus® UC Surface software
