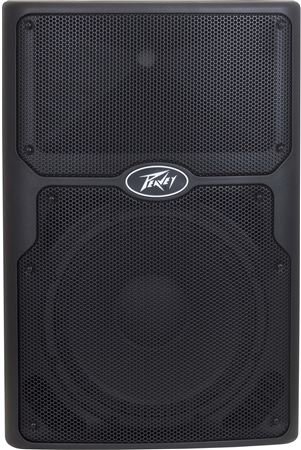

PVXp™ 12 Bluetooth® 12-inch Powered Loudspeaker
The PVXp™ 12 Bluetooth® features a reliable bi-amped power section that provides a total of 980 Watts of peak dynamic power with DSP based compression and limiting. This enclosure features a 12" heavy-duty woofer with a 2 3/8" inch voice coil and 50 ounce magnet, and the RX14™ compression driver with a 1.4 inch titanium diaphragm on a 100 degree horizontal x 50 degree vertical pattern asymmetrical horn. The PVXp™ 12 Bluetooth® provides two channels with a balanced input via a combination jack that accepts balanced TRS 1/4" inch input as well as a balanced XLR input. A switch is provided to change between line level gain and mic level gain. A third channel is for a Bluetooth source, or alternatively a 1/8" AUX input jack. Each channel has an adjustable Level control and a three-band EQ section. There is a balanced output, a Male XLR, that can feed the mixed signals from the three channels out to another component. A front baffle LED indicator can be set to light when power is on, and when the "soft-limiting" DDT circuit is activated, or it can be turned off altogether. The LCD display and EQ presets, along with other DSP operating parameters are accessed via a one-knob selector.
